5/16-24 UNF-2B
TRUNCATED INTERNAL THREAD
0.301 MAJOR DIAMETER
RING TERMINAL
SEE NOTE 1
TIP TERMINAL
SEE NOTE 1
SCREWS (2)
SEE NOTE 1
1.13
0.59
0.264
I.D. REF
2.08
0.03
1.14
0.44
NOTES:
1. TERMINALS AND SCREWS ARE SHIPPED
UNASSEMBLED AS HARDWARE KIT K172.
2. HANDLE SHIPPED UNASSEMBLED.
3. MATERIALS:
TIP ROD, RING & SLEEVE - COPPER ALLOY
INSULATION - THERMOPLASTIC, BLACK
TERMINALS - COPPER ALLOY, TIN PLATED
SCREWS- COPPER ALLOY
HANDLE - THERMOPLASTIC, RED
4. THIS PRODUCT IS RoHS COMPLIANT.
SCREW
SEE NOTE 1
HANDLE, RED
SEE NOTE 2
0.25

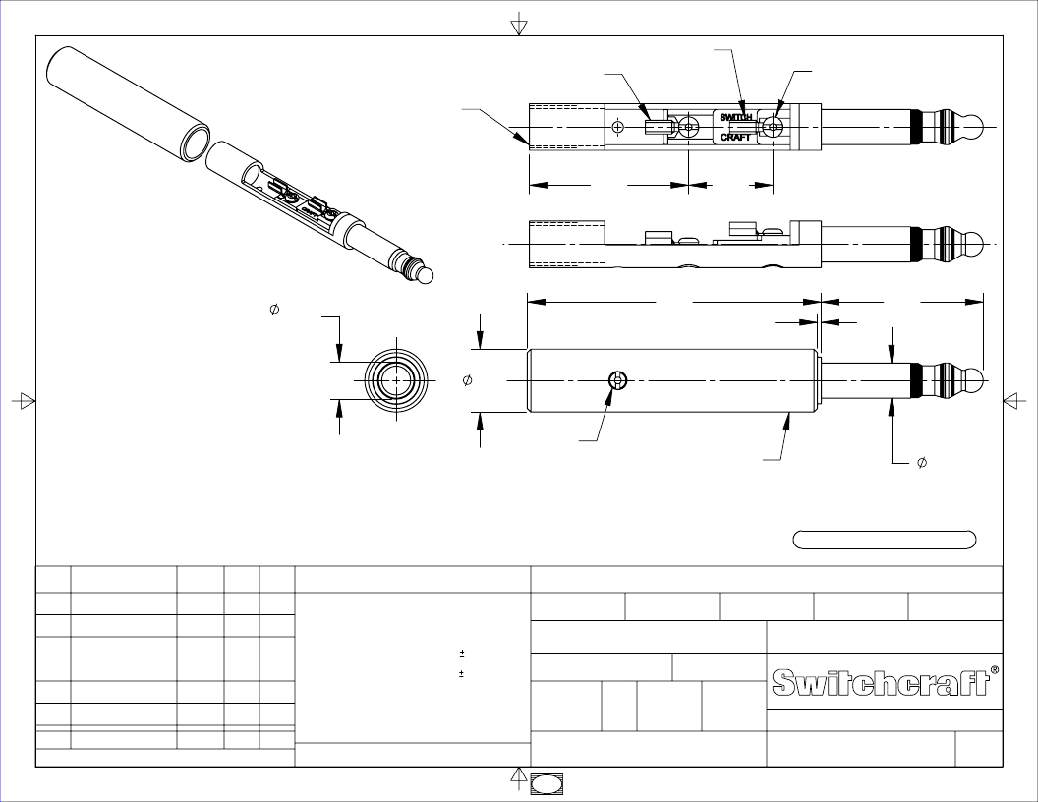

CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
SIZE
WIDTH
MULT
LBS/M
TEMPER
1. ALL DIMENSIONS IN INCHES
FINISH
MATERIAL
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SPEC No.
FIRST USED ON
SCALE
1.5:1
SPEC No.
A
25653
6/14/07
RS
TJK
DATE DRAWN
1/10/11
BY
RS
CHKD
RS
1/10/11
APVD
TJK
1/10/11
SHEET
1
OF
1
A
REV
ECO NUMBER
REVISIONS
DATE
BY
APVD
DO NOT SCALE DRAWING
SolidWorks CAD File
NAME
A
LITTEL PLUG, RoHS
PART No.
482X
REV
